Full Height ADA Access Gates
Full Height ADA Access Gates

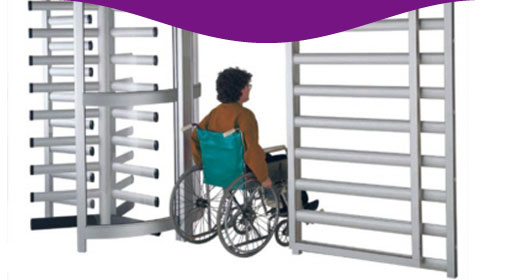

To accompany your full security turnstile, the ADA Access Full Height Gate is designed to provide handicap access control for those unable to utilize the turnstile.
Available models
- THG-51E
- THG-51EL
- THG-51SG
THG-51E
- Designed to provide handicap access into installations using full security turnstiles and access control
- Electrically operated by a 24 VDC doorstrike or magnetic lock and can be self-closing via a transom mounted overhead close
- Construction is a 2" square buck with interior door panel frame fabricated from 2" square tubing with round horizontal members; Due to the general close proximity to full height turnstiles, construction materials usually match the turnstiles
- Fabricated from hot-dipped galvanized steel (THG-51EC), powder coated steel (THG-51ECP), anodized aluminum with stainless steel arms (THG-51EA) or complete stainless steel (THG-51ES)
- Gate height of 86" matches turnstiles
- Clear opening of 34" exceeds minimum ADA requirements
- Gate swing is 90 degrees with gate panel attached to the buck via a continuous stainless steel hinge
- Final width and height can be customized for industrial applications
THG-51EL
- Provides handicap access into installations using full security turnstiles and access control
- Gate is electrically operated by a 24 VDC doorstrike or magnetic lock and can be self-closing via a transom mounted overhead closer
- Construction is a 2" square buck with the interior door panel frame fabricated from 2" square tubing with round horizontal members; Due to the general close proximity to full height turnstiles, construction materials usually match the turnstiles
- LexanŽ gates use a full 3/8" thick panel instead of horizontal bars
- Gate height of 86" matches turnstiles
- Clear opening of 34" exceeds minimum ADA requirements
- Gate swing is 90 degrees with gate panel attached to the buck via a continuous stainless steel hinge
- Final width and height can be customized for industrial applications
THG-51SG
- Provides sliding gate access to handicap personnel and is fully compliant with existing ADA guidelines
- Overhead mounted gate operator allows touch free use merely by presenting proper credentials to the access control system
- When activated and opened, the sliding gate provides a 36" clear opening
- Fabricated from anodized aluminum, the THG-51SG is a perfect ADA compliant accessory to the THT-100ASTG full height turnstile series and is available in matching finishes
